How to use Figma MCP with Claude Code to build pixel perfect designs

I have been a very bad front-end developer. Every time I pick a project, I end up doing only the backend, and at best, I slap a CLI for interfacing. I've lost count of how many projects I've abandoned that could have made me a millionaire (not really).

But we're living in the most interesting timeline. With all these fancy technologies, LLMs, CLI agents, and MCPs, things are going to be a whole lot easier.

I have been using Claude Code a lot lately; it's the best thing that has happened to humanity since Messi's FIFA 22 campaign (Don't get mad, please) and tying MCP servers with it can do wonders.

In this blog post, I will show you how to configure the Figma MCP with Claude Code to build pixel-perfect front-end components.

What is Covered?

• Configuring Composio Figma MCP (This is the best Figma MCP server, BTW!). Try it to believe.

• Integrate the Figma MCP server with Claude Code to build frontend components. (You can use it with Cursor and Gemini CLI as well, but I like Claude Code more)

Set up the Figma MCP server and Claude Code

We’re going to use Composio to add Figma MCP server support to Claude Code.

Head over to connect.composio.dev. If you don’t already have an account, sign up first.

Once you’re in the dashboard, scroll down a bit, and you should see Claude Code as one of the installation options.

If you’re using something else like OpenAI Codex, OpenClaw, or want to use it with an MCP URL, that option is there too.

For now, I’m going with Claude Code because it’s been the most helpful coding agent for me so far.

At this point, you’ve got two ways to authenticate:

1. OAuth

2. API Key

OAuth (Recommended)

OAuth is the recommended option because you don’t have to deal with API keys yourself. Composio handles the authentication under the hood.

To install Composio in Claude Code using OAuth, just run:

claude mcp add --scope user --transport http composio https://connect.composio.dev/mcp

As you can probably tell, all we’re doing here is adding the Composio MCP under user scope and letting it handle authentication through the app. This is the safest option and the one I’d recommend.

API Key

If you want to use an API key instead, you can still do it in one step. Just run:

claude mcp add --scope user --transport http composio https://connect.composio.dev/mcp --header "x-consumer-api-key: <your_consumer_key>"

Make sure to change the placeholder <your_consumer_key> with your actual consumer key.

💡 Note: The only difference here is that with the API key approach, you’re authenticating by sending a request header with every request to the Composio server. As you can imagine, that consumer key is your API key, so keep it safe and don’t let it get compromised.

By default, Claude Code saves this to ~/.claude.json, but I personally don’t like saving it globally.

So, in the project where you actually plan to use Claude Code, copy that file into a local .mcp.json folder instead.

This makes it much easier to keep MCP servers scoped to each project, which is super helpful as you add more for different setups.

Run this to copy the config into your current directory:

cp ~/.claude.json .mcp.json

Verify the Connection

Now that Composio has been added to Claude Code, it’s time to verify the connection or authenticate if you chose OAuth.

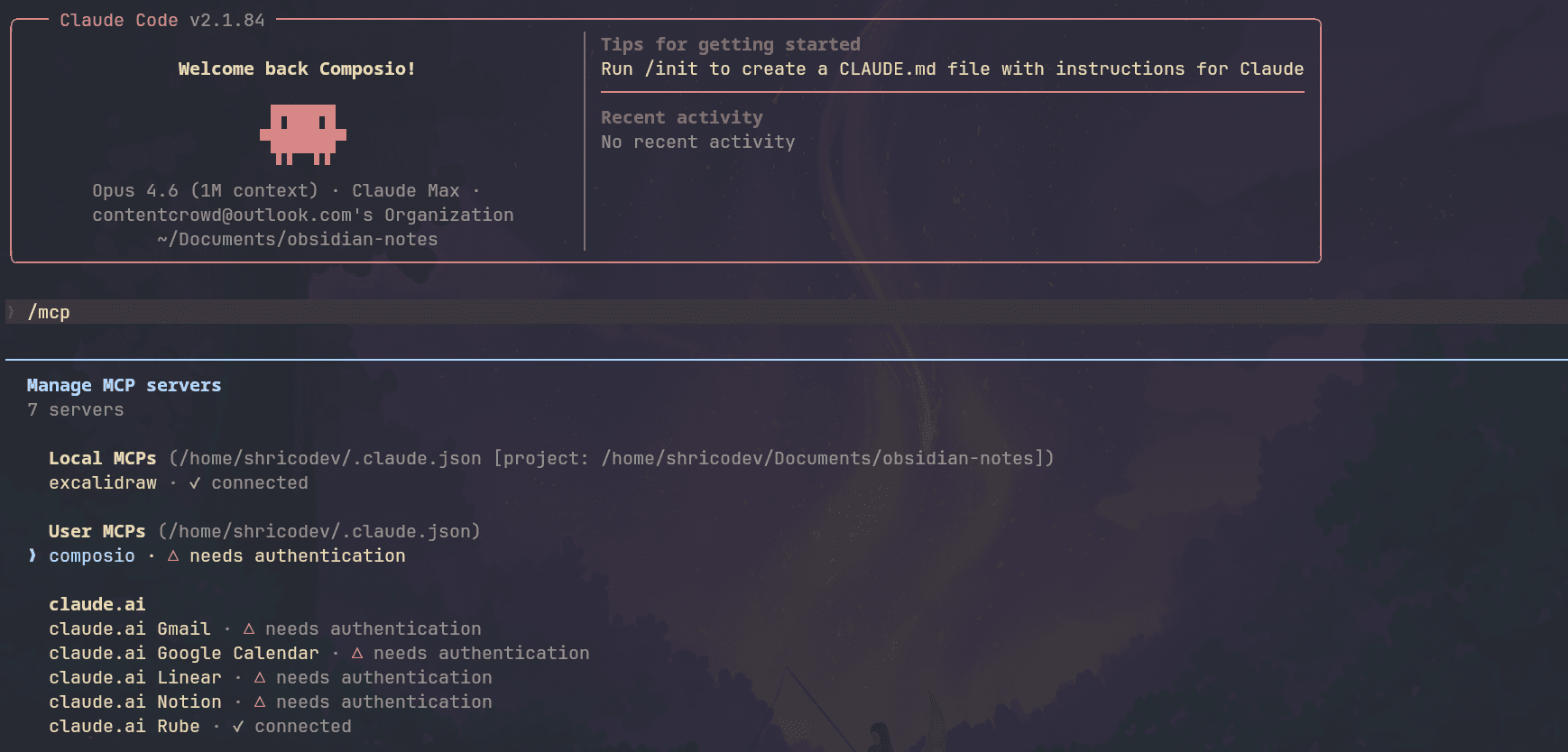

Open Claude Code and type /mcp, then select Composio and follow the browser login flow to authorize access to your Composio account. This part only applies if you’re using OAuth.

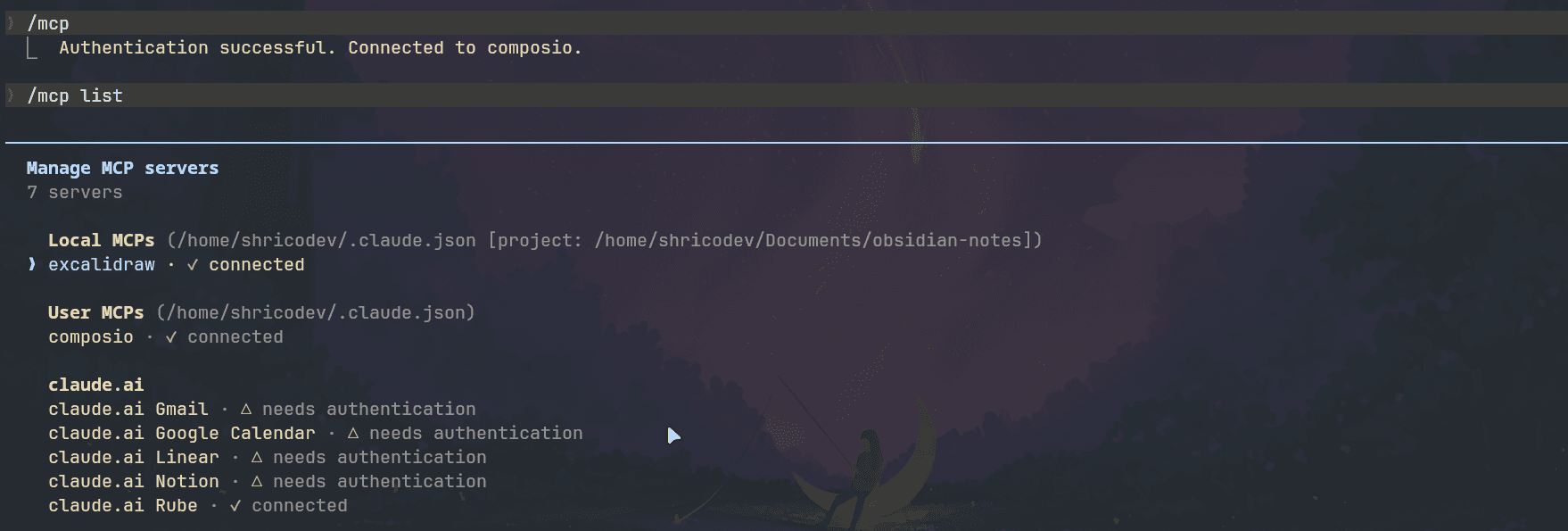

Once that’s done, you can confirm everything is working by listing your MCP servers with:

/mcp list

You should see Composio in the list.

Connect Figma

Now that all the groundwork is done, the only thing left is to connect Figma.

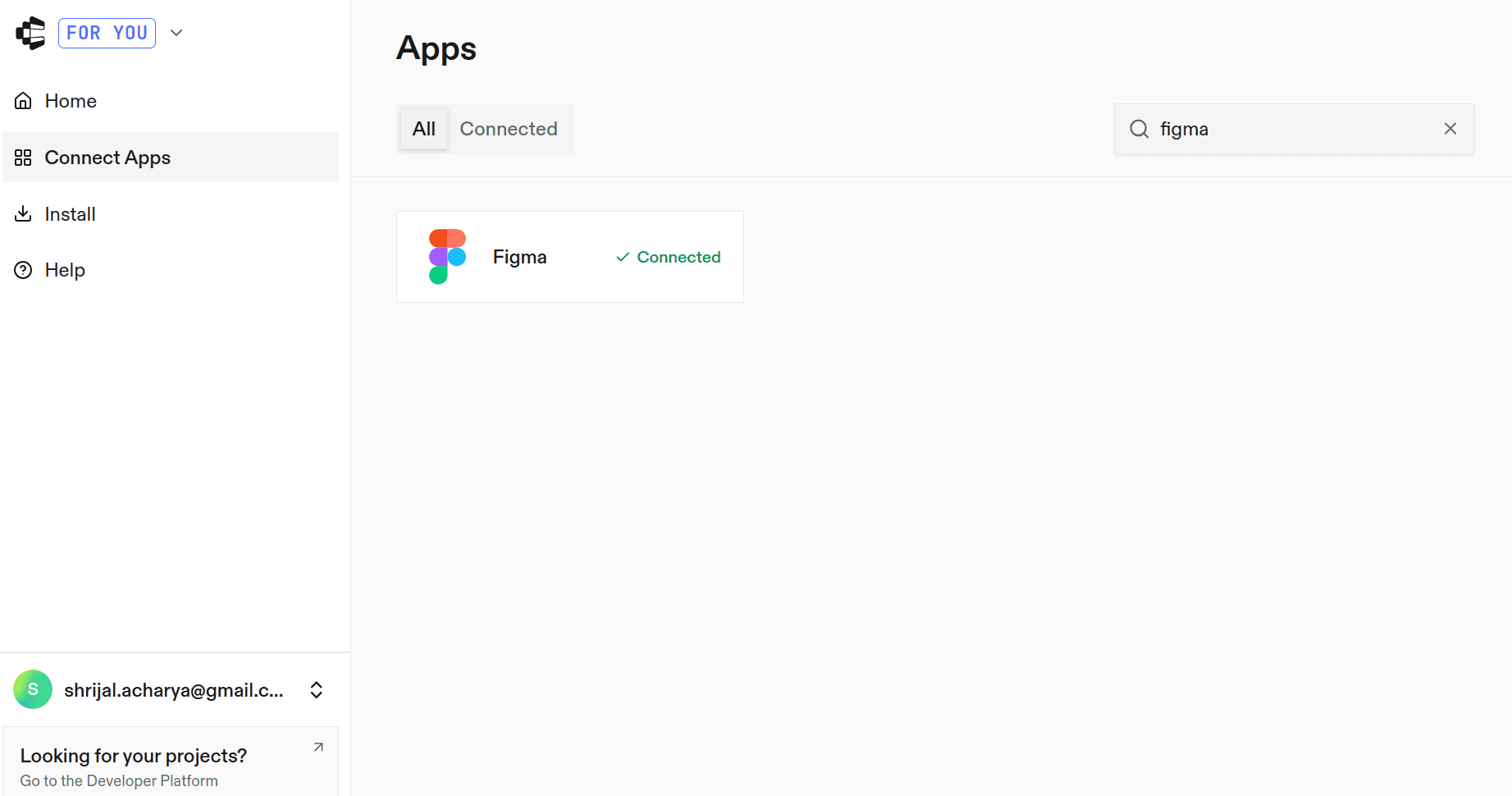

In the sidebar, click Connect Apps, search for Figma, and connect it. As simple as pressing one single Connect button.

Once connected, Figma should show up as connected. This is basically your one place to plug in all the tools you want to use.

And just like that, you’re done.

You can now clone any Figma design, no matter how complex it is.

Demo

💁 In this demo, I'll clone a sample CRM Dashboard design from Figma.

All you need is the link to the Figma file. Just chat with Claude Code, then sit back and relax. Your clone will be ready in seconds.

Prompt: I need you to clone the dashboard from this Figma design: <URL>. Use HTML, CSS, and JS. Make sure you clone the exact design. Don't show your creativity, make it exact.

Here's the Figma template:

Here's what it generated:

As you can see, it's almost an exact copy of the original design. You could ask it to build with Tailwind and any JS frameworks like Next.js, but for simplicity, I asked it to use plain HTML, CSS, and JS, and it did a pretty good job.

Here’s the video demo:

You can find the entire code it generated here: Code for the Figma Dashboard

TRY THE FIGMA MCP SERVER, NOWWW!

Conclusion

It's remarkable how quickly things are evolving with MCPs, coding agents, and LLMs. However, there are also emerging challenges, particularly in terms of security, availability, and reliability. Trusting random server providers without a proper safety net can be fatal. It's kinda what Composio stands for. Check out the trust page for more.
